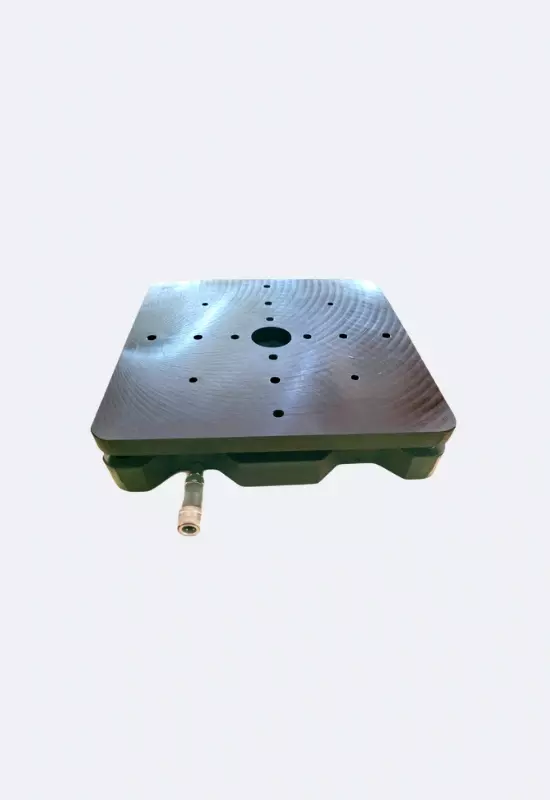

Zero Point Systems
This revolutionary technology allows to fix, position and clamp in a single step, cutting set up times by up to 90%. Available with either pneumatic or hydraulic release, these positive locking and locating modules allow operators to quickly change out large and small fixtures with extreme accuracy and minimum effort.
Quickly and accurately locate and clamp Vises or fixtures, and with pull studs attached to your part, direct mount your component for machining or welding without interference from jaws or clamps. That’s the beauty of what Zero Point System can deliver.

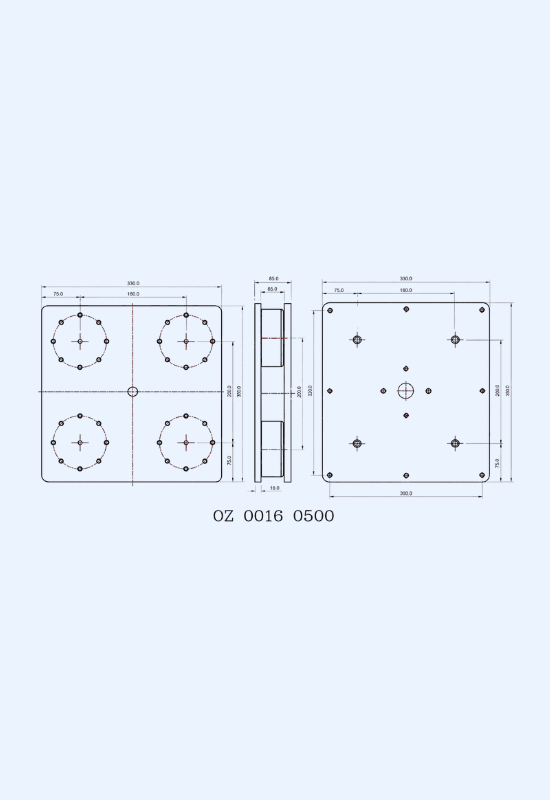

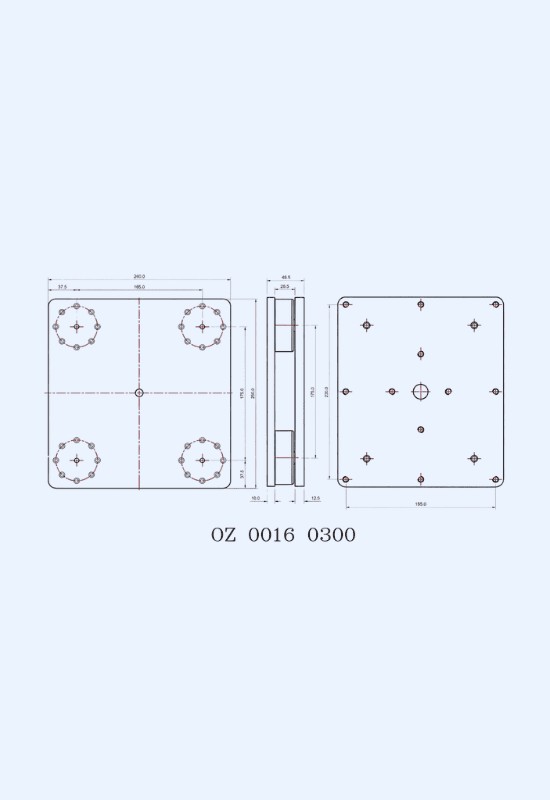

Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle
Working Principle

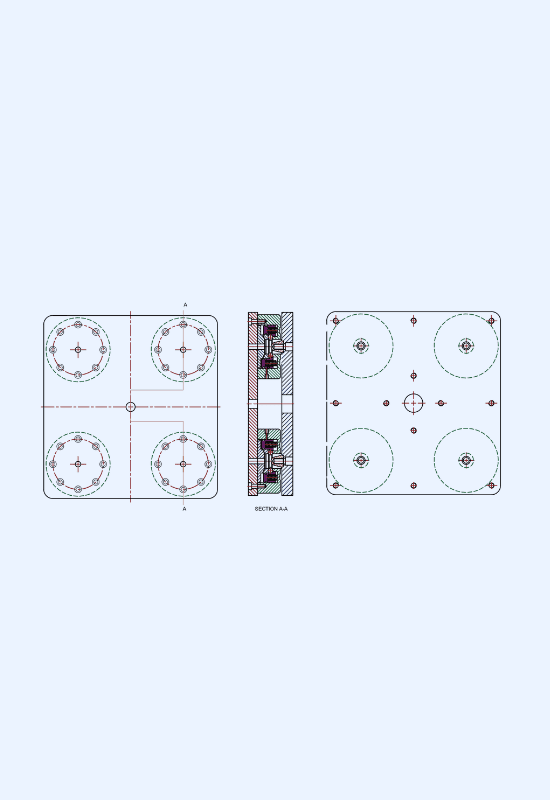

Similar to the mechanism that grips rotary toolholders on many machining centres, zero-point clamps employ a pull stud and clamping balls to pull a pallet, fixture or other work holding devices or even the part itself against the ground face of a zero-point module.
The pull stud sits inside the chuck bore and offers positional accuracy to within a 0.005 mm and high clamping forces until released through hydraulic or pneumatic pressure. Features
Working Principle
Similar to the mechanism that grips rotary toolholders on many machining centres, zero-point clamps employ a pull stud and clamping balls to pull a pallet, fixture or other work holding devices or even the part itself against the ground face of a zero-point module.
The pull stud sits inside the chuck bore and offers positional accuracy to within a 0.005 mm and high clamping forces until released through hydraulic or pneumatic pressure. Features
- Hardened stainless (AISI 440B) steel construction
- Integrated safety system
- Compact design
- Positive mechanical locking
- High retaining force
- Flexible Design Options
- Available in Pneumatic & Hydraulic Modules
- Custom Design & Build
- Milling
- Welding
- Injection moulding
- Grinding
- Measuring
