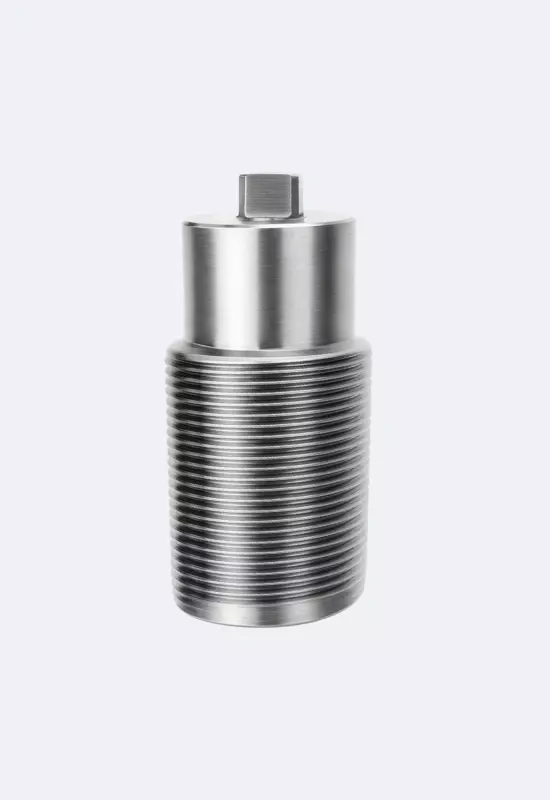

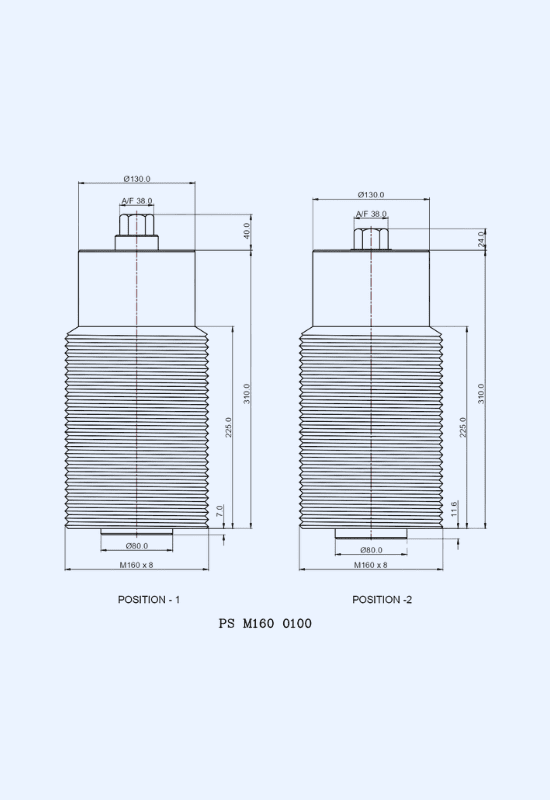

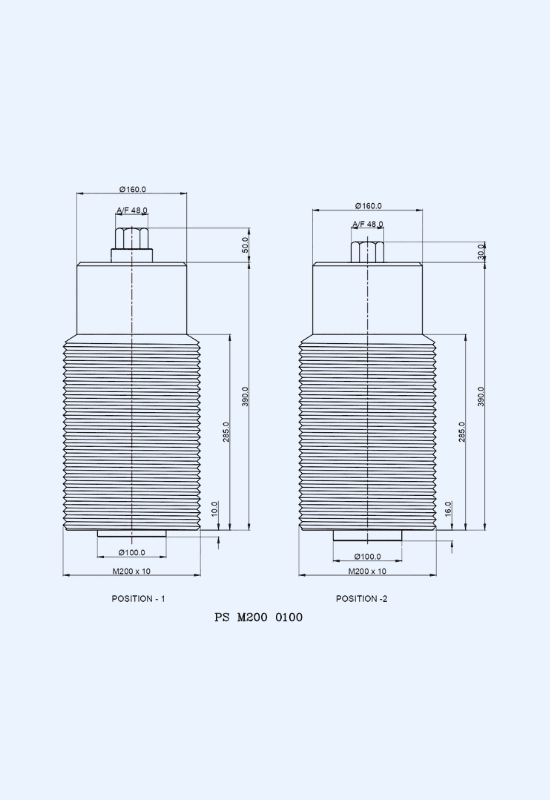

Power Screw - PS
The power clamping screws of the SC series are designed with a wedge system as force amplifier. This innovative system allows for highest clamping forces with low actuation torques, simple and manual operation. The robust design of all parts, the self-locking mechanism as well as a high overload capability guarantee maximum operational safety.
Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle

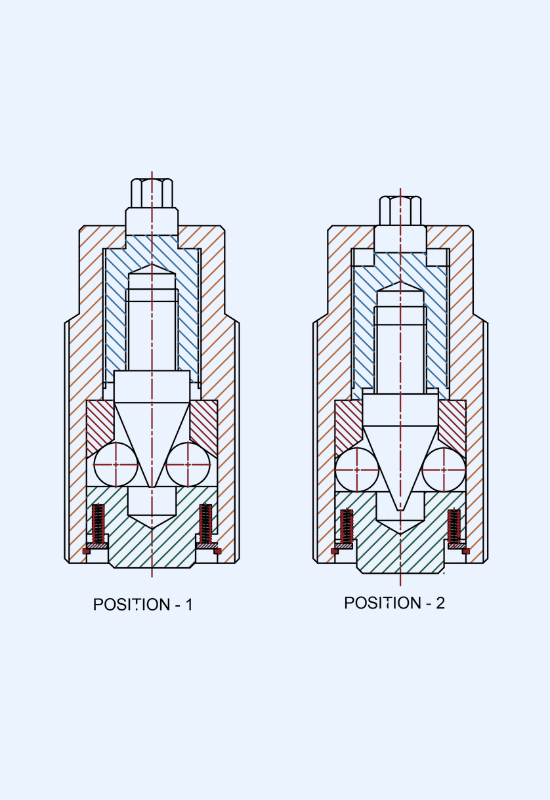

The double acting mechanical power clamping screws are designed for “external“ clamping (shafts, rollers) as well as “internal“ clamping (pipes, bushes). These power clamping screws are equipped with a “wedge mechanic” system as force magnifier. It is also equipped with an automatic mechanism to change clamping direction. This system generates high clamping forces with a simple operating procedure requiring low manual actuation torque. The state of the art “wedge mechanic” system is extremely robust and self-locking in every clamping stage. The high stiffness achieved thus also increases operational safety. Features
The double acting mechanical power clamping screws are designed for “external“ clamping (shafts, rollers) as well as “internal“ clamping (pipes, bushes). These power clamping screws are equipped with a “wedge mechanic” system as force magnifier. It is also equipped with an automatic mechanism to change clamping direction. This system generates high clamping forces with a simple operating procedure requiring low manual actuation torque. The state of the art “wedge mechanic” system is extremely robust and self-locking in every clamping stage. The high stiffness achieved thus also increases operational safety. Features
- Available in various sizes: M 16 to M 64
- Clamping load depending on bolt size
- Heat treated alloy steel construction.
- Corrosion resistant for long service life.
- Mechanical clamping and release
- Robust and leak-proof design.
- Temperature range: -30°C up to +100°C
- Slide-in-clamp - For face plates and surface plates on jaw boxes as well as grinding and turning machines and special machines.
- They are primarily suited for integration in jaw boxes installation in face plates of lathes, grinding and special machines.
