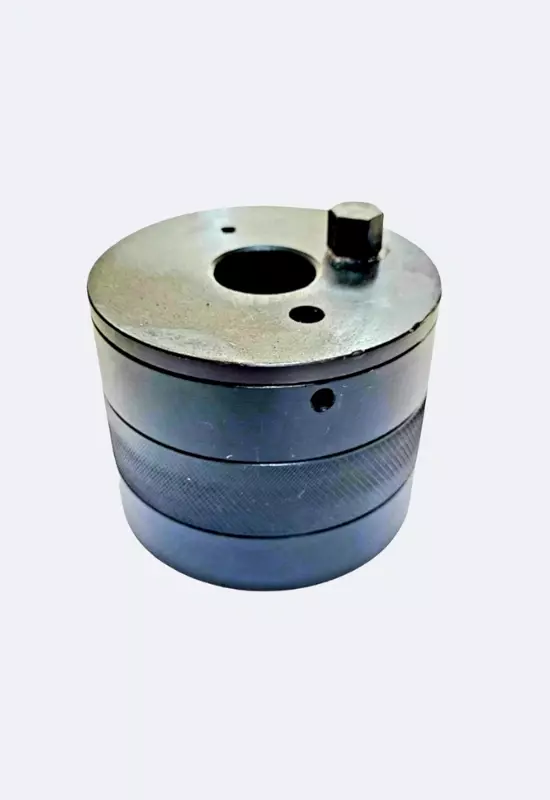

Power Nut-PI
Maximum clamping forces through force amplification simple and manual operation with low actuation torque. High operational safety through self-locking mechanism, corrosion resistant, robust construction, working up to 400°C temperature. Mechanical Power Clamping Nut - PI are manufactured by PRS Verse. The salient design feature is an integral inbuilt gear transmission for the amplification of the manual actuation torque. With this, the user has a sturdy and flexible clamping element which allows for high clamping forces with simple manual operation and maximum operational safety.
Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle

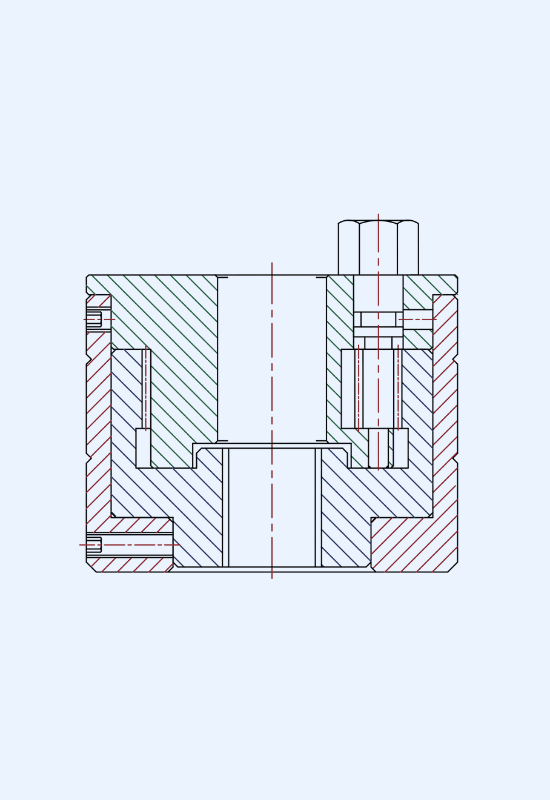

The PI series designed with internal gear system with a through hole thread and sidewise operating by spanners through hexagon on top side. The power clamping nut can be used for various clamping tasks throughout the machine tool industry, particularly for clamping in presses and punches. Lubrication with food grease for the food industry, laboratory area, etc. torque wrench or operation tools upon request. Available options are with integrated torque limiter, operation without a torque wrench, high temperature application up to 400°C, corrosion resistant version for demanding ambient conditions. Features
The PI series designed with internal gear system with a through hole thread and sidewise operating by spanners through hexagon on top side. The power clamping nut can be used for various clamping tasks throughout the machine tool industry, particularly for clamping in presses and punches. Lubrication with food grease for the food industry, laboratory area, etc. torque wrench or operation tools upon request. Available options are with integrated torque limiter, operation without a torque wrench, high temperature application up to 400°C, corrosion resistant version for demanding ambient conditions. Features
- Available in various sizes: M 16 to M 64.
- Clamping load depending on bolt size.
- Heat treated alloy steel construction.
- Corrosion resistant for long service life.
- Mechanical clamping and release.
- Robust and leak-proof design.
- Temperature range: -30°C up to +400°C.
- Custom designs available with variety of mounting option.
- Machine tool slide clamping.
- Production safety in fixture clamping.
- Packaging machinery.
- Die and Mold locking and countless more.
