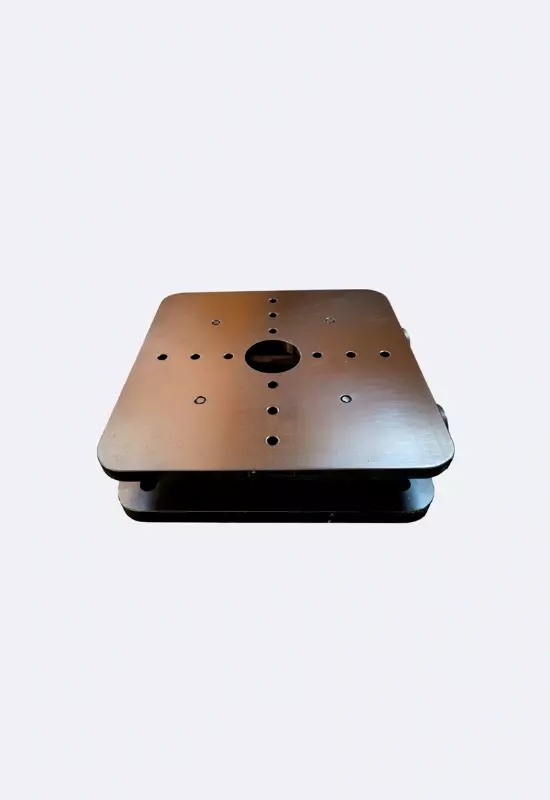

Mechanical Lock Systems
Our Mechanical ‘O Point’ Clamping System enables you to completely machine a workpiece in one setup, significantly reducing setup time and fixturing costs. With a few quick turns of a wrench, ‘O Point’ clamping modules locate, support, and securely clamp the workpiece from underneath, providing full machining access to 5 sides.
Clamping modules can be mounted exactly where required, anywhere on the fixture plate. These modules fit perfectly on all of Carr Lane’s 1/2” and 5/8” modular tooling plates and blocks, but can also be used with non-modular tooling. Clamping modules elevate the workpiece for machine-spindle clearance, and are stackable for extra height.
Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle
- Pillar-Shaped Pull Clamps
- Pull down the clamping screws mounted on the bottom of fixture plates.
- Excellent Repeat Accuracy - 0.005 mm repeatability by dual surface contact
- External fixture setup eliminates machine downtime.
- Quick and Easy Clamping, Flexible Positioning
- Positioning and clamping in one operation Just turn knobs
Features
- Assembly lines, light-duty machining, packaging, and robotic systems.
- CNC Machines
- EDM Machines
- Welding Fixtures
- Packaging Machines
Applications
- Robotic systems
- CNC Machines
- Injection Moulding
- EDM Machines
- Welding Fixtures
- Packaging Machines
