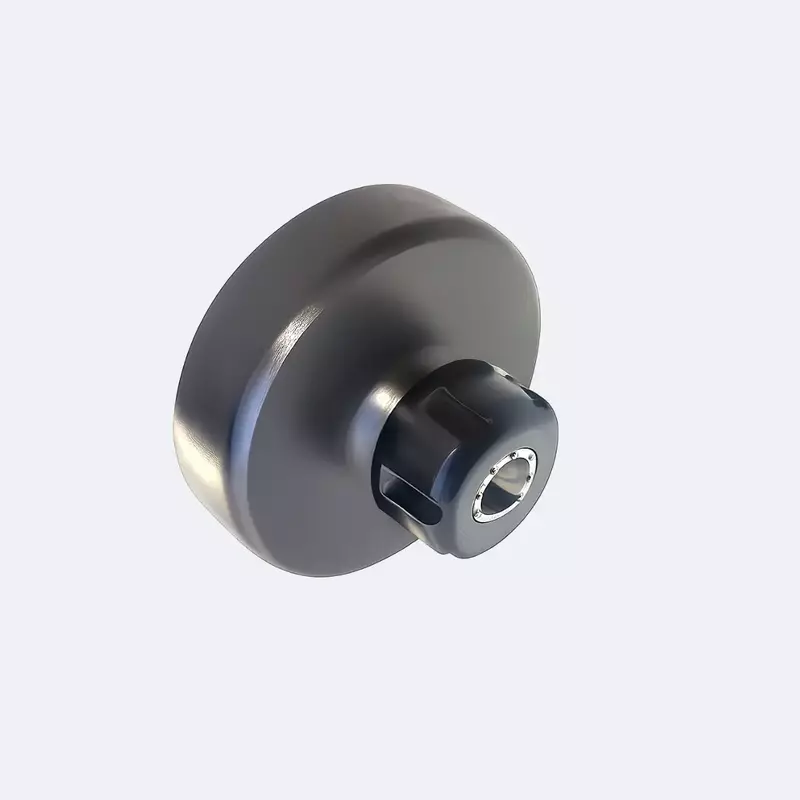

Collet Chuck
This set consists of a 100 mm Diameter ER32 Collet Chuck Holder complete with ER Collet, clamping nut, spanner and set of ER Collets in the specified sizes.The Chuck is of the 4-hole suitable for mounting on 72 mm pitch circle diameter, it can be fixed to your existing backplate via the four Allen screw - M8 x 1.25 Threaded holes or it can be mounted on three jaw chuck.
Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle
Collet Chuck Holders are manufactured in India with the highest quality standards. We provide professional service along with competitive pricing. For any interest in Collet Chuck Holder products, customization options are available based on specific requirements, design, and application needs. Designed with a fixed-length actuation system, the collet is held stationary during operation. This allows the collet chuck to be efficiently used in bar feeding operations as well as in highly accurate second operations. Customers can be assured of proper pricing, dedicated service, and high-quality manufacturing backed by consistent performance. Features
Collet Chuck Holders are manufactured in India with the highest quality standards. We provide professional service along with competitive pricing. For any interest in Collet Chuck Holder products, customization options are available based on specific requirements, design, and application needs. Designed with a fixed-length actuation system, the collet is held stationary during operation. This allows the collet chuck to be efficiently used in bar feeding operations as well as in highly accurate second operations. Customers can be assured of proper pricing, dedicated service, and high-quality manufacturing backed by consistent performance. Features
- Collets offer a ±0.5 mm clamping range to handle rough bars
- Small nose diameter provides excellent tool clearance
- Case hardened construction for improved rigidity, strength, and durability
- Quick collet change using a spanner, reducing changeover time to seconds
- Lathe machines
- Milling machines
- CNC lathe machines
- Drilling machines
