Centring Vise

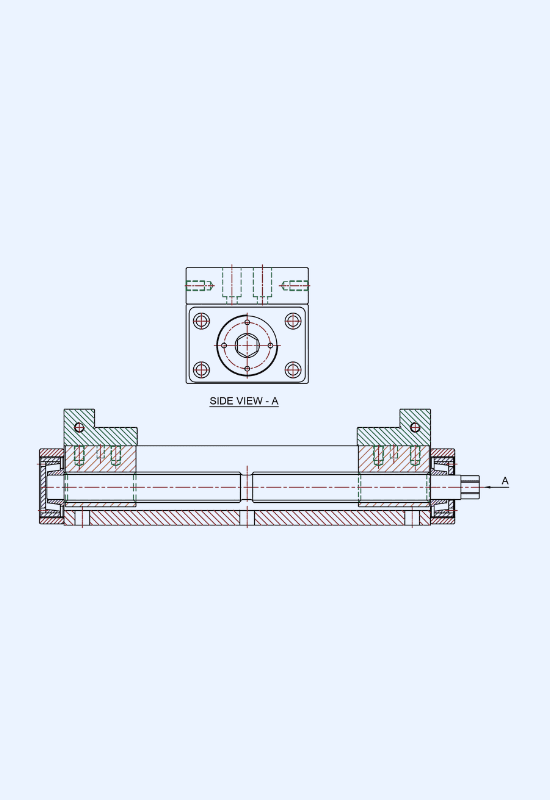

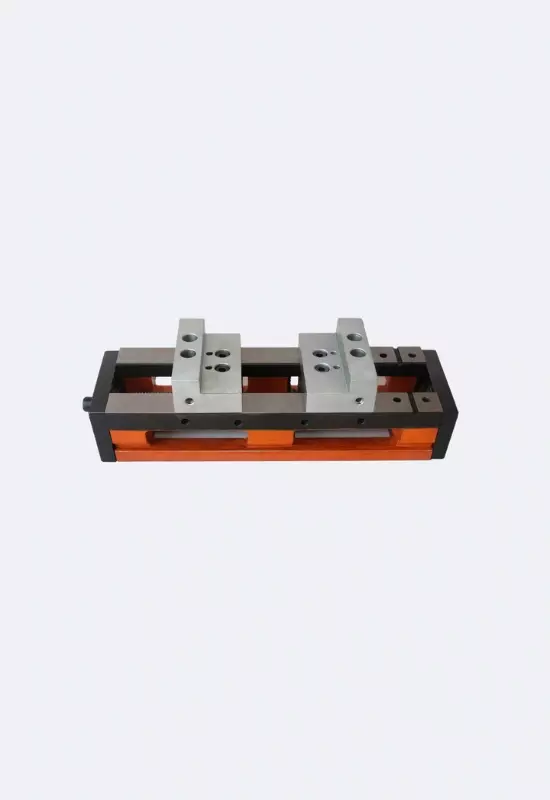

Self-Centering Vises have been engineered to be the ideal solution for work holding for heavy machining. Available in sizes up to 300 mm widths, both jaws are moved simultaneously to maintain perfect positioning of job, these vises can accommodate a wide variety of workpiece. The special long box nut produced from wear resisting material feature to minimize jaw wear and to avoids component lift. Clamping is done mechanically through handle.
Ordering Code
Choose Quantity :
Product Information
Operating Principle / Features / Applications
Operating Principle
1. The floating movable jaw allows a fast and safety clamping for rough pieces not perfectly parallels. Our precision modular Vise in the standard version is supplied with the guided movable jaw running parallel along the whole Vise base axis.
1. The floating movable jaw allows a fast and safety clamping for rough pieces not perfectly parallels. Our precision modular Vise in the standard version is supplied with the guided movable jaw running parallel along the whole Vise base axis.
2. The fixed jaw can be turned around 180 degrees, and its back step matches with accuracy to the prismatic jaw step, in this way the maximum vice opening is increased.
3. Jaw plates manufactured with a pull-down angle, ensure, during the clamping operation, a downward run of the work piece against the vise base
Features
- Hardened jaw construction
- Alloy steel construction.
- Repetitive fine accuracy
- Trapezoidal Screw threads
- Lead screw with roller bearing support
- Minimum backlash construction
Applications
- Production Tool Room.
- Manufacturing Production Shop.
- CNC Lathe and Machining Centers.
- Press Tool Machines.
- Plastic Manufacturing Shops.
